HEAD gaskets  |  BASE gaskets  |  gasket SETS

CYLINDER HEAD GASKETS
For CB750 SOHC 1969-78 K&F - Made in the U.S.A.

BORE SIZES:

750cc  |  811-836cc  |  890cc  |  915cc  |  970cc  |  1000cc  |  1055cc  |  1080cc

GASKET MATERIALS:

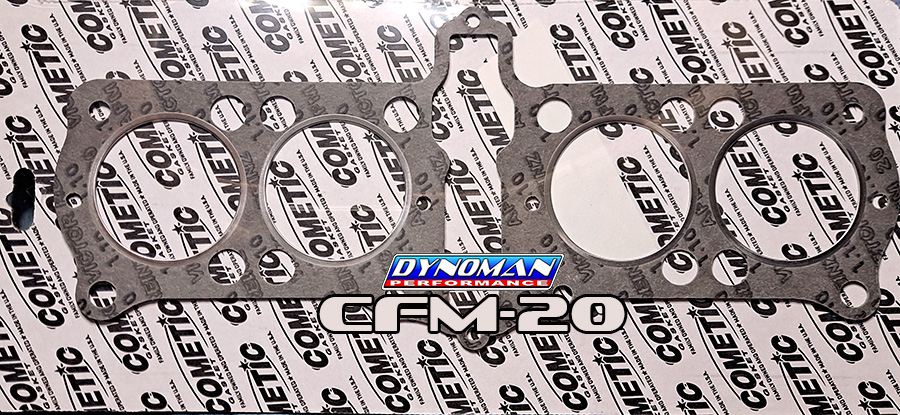

CFM-20 COPPER MLS
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to oils.

Great for street and some racing applications.

Available thickness: .043", .059"

Dead Soft Copper

Recommended primarily for racing applications.

Available thickness:
.027", .032", .043", .050"

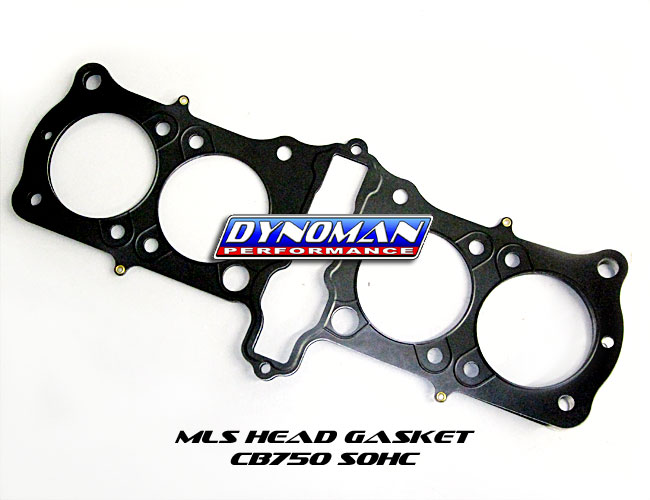

MLS stands for Multi-Layer Steel. MLS head gaskets are comprised of three layers of stainless steel. The outer layers are an embossed Viton coated stainless steel providing a superior seal with excellent rebound characteristics and are corrosive resistant. A very fine surface finish is required for use more details

Available thickness .030" and .040"

750 - Stock bore 736cc HEAD GASKETS
Up to 62mm
     GASKET MATERIAL THICKNESS PART # ORDER
    Multi Layer Steel (MLS) - please see notes before ordering  $87.73
    Designed and manufactured in the USA
MLS head gasket MLS head gasket MLS head gasket .030" DP H-736-MLS030
For 69-78 CB750 F&K .040" DP H-736-MLS040
    CFM-20 -  $54.34
.043" DP H-736-CFM043
  .059" DP H-736-CFM059
    Copper - $62.51
* Other thicknesses
   available by special order
.043" DP H-736-COP043
  .050" DP H-736-COP050


811-836cc  HEAD GASKETS
approx 65mm bore size
     GASKET MATERIAL THICKNESS PART # ORDER
     Multi Layer Steel (MLS) - please see notes before ordering   $87.73
    Designed and manufactured in the USA
For 69-78 CB750 F&K .030" DP H-836-MLS030
MLS head gasket MLS head gasket MLS head gasket .040" DP H-836-MLS040
     CFM-20 -  $54.34
.043" DP H-836-CFM043
(C8001)
  .059" DP H-836-CFM059
     Copper -  $62.51
* Other thicknesses
   available by special order
.032" DP H-836-COP032
Dynoman Copper Head Gasket for CB750 SOHC .043" DP H-836-COP043

.050" DP H-836-COP050
890cc  HEAD GASKETS
approx bore size 67mm
     GASKET MATERIAL THICKNESS PART # ORDER
     Multi Layer Steel (MLS) - please see notes before ordering    $87.73
     Designed and manufactured in the USA
For 69-78 CB750 F&K .030" DP H-890-MLS030
MLS head gasket MLS head gasket MLS head gasket .040" DP H-890-MLS040
     CFM-20 -  $54.34
.043" DP H-890-CFM043

     Copper -  $62.51
* Other thicknesses
   available by special order
.032 DP H-890-COP032
  .043 DP H-890-COP043
  .050 DP H-890-COP050


915cc  HEAD GASKETS
approx bore size 68mm
     GASKET MATERIAL THICKNESS PART # ORDER
     Multi Layer Steel (MLS) - please see notes before ordering    $87.73
     Designed and manufactured in the USA
For 69-78 CB750 F&K .030" DP H-915-MLS030
MLS head gasket MLS head gasket MLS head gasket .040" DP H-915-MLS040

     CFM-20 - $54.34
.043" DP H-915-CFM043
(C8002)

     Copper -  $62.51
* Other thicknesses
   available by special order
.032 DP H-915-COP032
  .043 DP H-915-COP043
  .050 DP H-915-COP050


970cc  HEAD GASKETS
approx bore size 70mm
     GASKET MATERIAL THICKNESS PART # ORDER
     CFM-20 -  $54.34
  .043" DP H-970-CFM043
    Multi Layer Steel (MLS) -   $69.95 to $87.73
    Designed and manufactured in the USA                    please see notes before ordering
  .030" DP H-970-MLS030
MLS head gasket MLS head gasket MLS head gasket .040" DP H-970-MLS040

     Copper - $62.51
* Other thicknesses
   available by special order
.027 DP H-970-COP027
  .032 DP H-970-COP032
  .043 DP H-970-COP043
  .050 DP H-970-COP050








1000cc  HEAD GASKETS
approx bore size 72mm
     GASKET MATERIAL THICKNESS PART # ORDER
    Multi Layer Steel (MLS) - please see notes before ordering    $87.73
    Designed and manufactured in the USA
For 69-76 CB750 F&K .030" DP H-1000-MLS030
MLS head gasket MLS head gasket MLS head gasket .040" DP H-1000-MLS040
     CFM-20 - Retail $54.34
  .043" DP H-1000-CFM043

     Copper - Retail $62.51
* Other thicknesses
   available by special order
.027 DP H-1000-COP027
  .032 DP H-1000-COP032
  .043 DP H-1000-COP043
  .050 DP H-1000-COP050








1055cc  HEAD GASKETS
approx bore size 73mm     please allow 10 days to ship this special order size
     GASKET MATERIAL THICKNESS PART # ORDER
    Multi Layer Steel (MLS) - please see notes before ordering    $87.73
    Designed and manufactured in the USA
For 69-76 CB750 F&K .030" DP H-1055-MLS030
  .040" DP H-1055-MLS040
     CFM-20 - Retail $54.34
.043" DP H-1055-CFM043

     Copper - Retail $62.51
* Other thicknesses
   available by special order
.032 DP H-1055-COP032
  .043 DP H-1055-COP043
  .050 DP H-1055-COP050






1080cc  HEAD GASKETS
approx bore size 74mm

Please contact us for ordering information on 1080cc head gaskets.

BASE Gaskets



MLS GASKETS - If you're wondering if MLS is right for you,
please email us after reading the information below!

MLS stands for Multi-Layer Steel. MLS head gaskets are comprised of three layers of stainless steel. The outer layers are an embossed viton coated stainless steel providing a superior seal with excellent rebound characteristics and are corrosive resistant. MLS head gaskets reduce bore distortion and withstand extreme cylinder pressures.

Cometic Multi-Layer Steel (MLS) head gaskets go on dry because they are coated with a sealant. Each MLS head gasket is coated with a .001" thick viton rubber that is bonded to the outer stainless steel layers. Adding an additional sealer can hinder the performance of an MLS head gasket.

MLS head gaskets require smooth, flat and true head and deck surfaces to seal. Most of the time with o-ring setups the wire and groove fall where our gasket’s combustion seal is located; therefore, the wire will hold the gasket and not allow proper compression while the receiver grooves allow combustion gases to escape.

A surface finish of 50 RA (roughness average) or finer, is recommended for a proper gasket seal. Anything rougher may conflict with the gasket design.

When using MLS head gaskets always refer to the manufacturer of the fastener to determine accurate torque values
